IA Series Ultra Fine-Pitch Indoor LED
The IA Series is the YINGLUX premium ultra fine-pitch indoor LED display, built on a compact 600×337.5mm slim cabinet just 32mm thick. Available in four ultra fine pixel pitches — IA0.93, IA1.25, IA1.56 and IA1.875 — for near-distance viewing without visible pixelation.

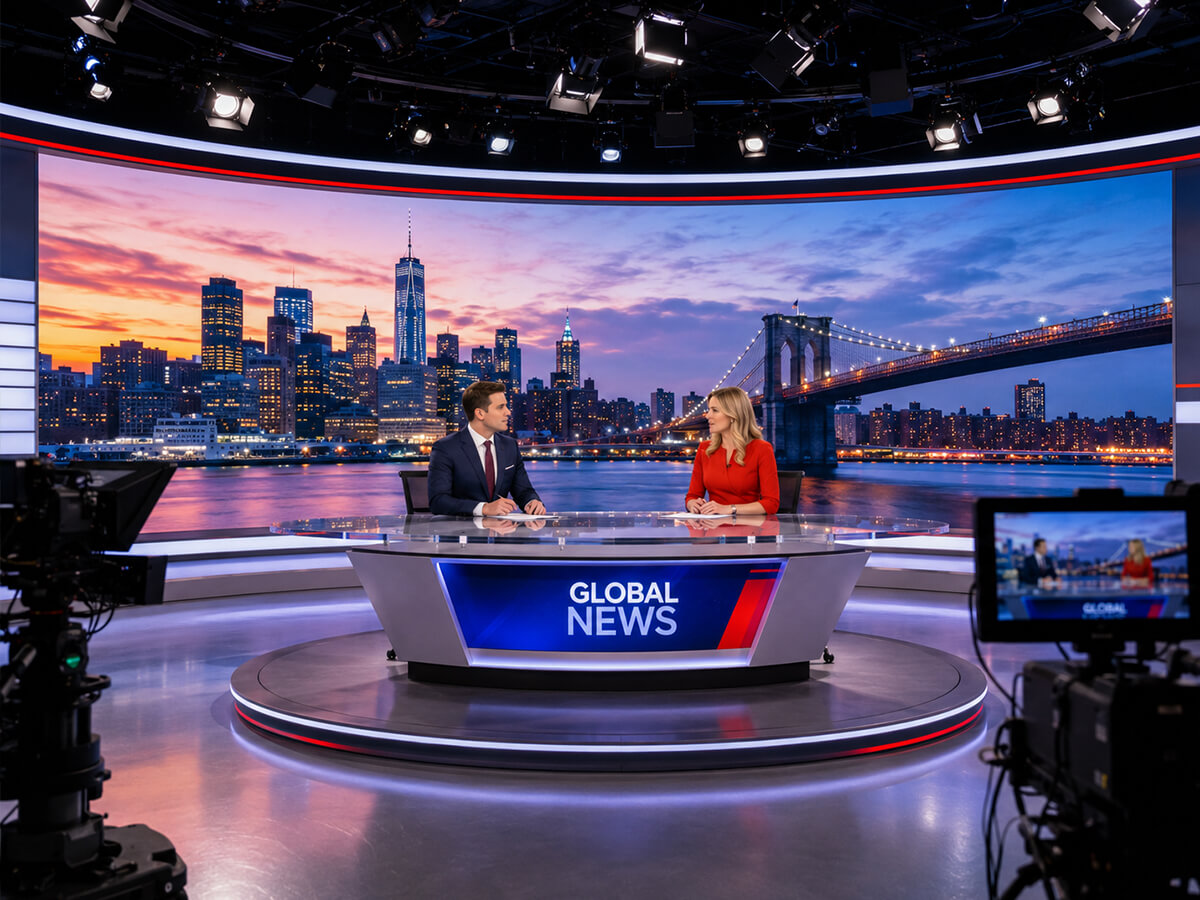

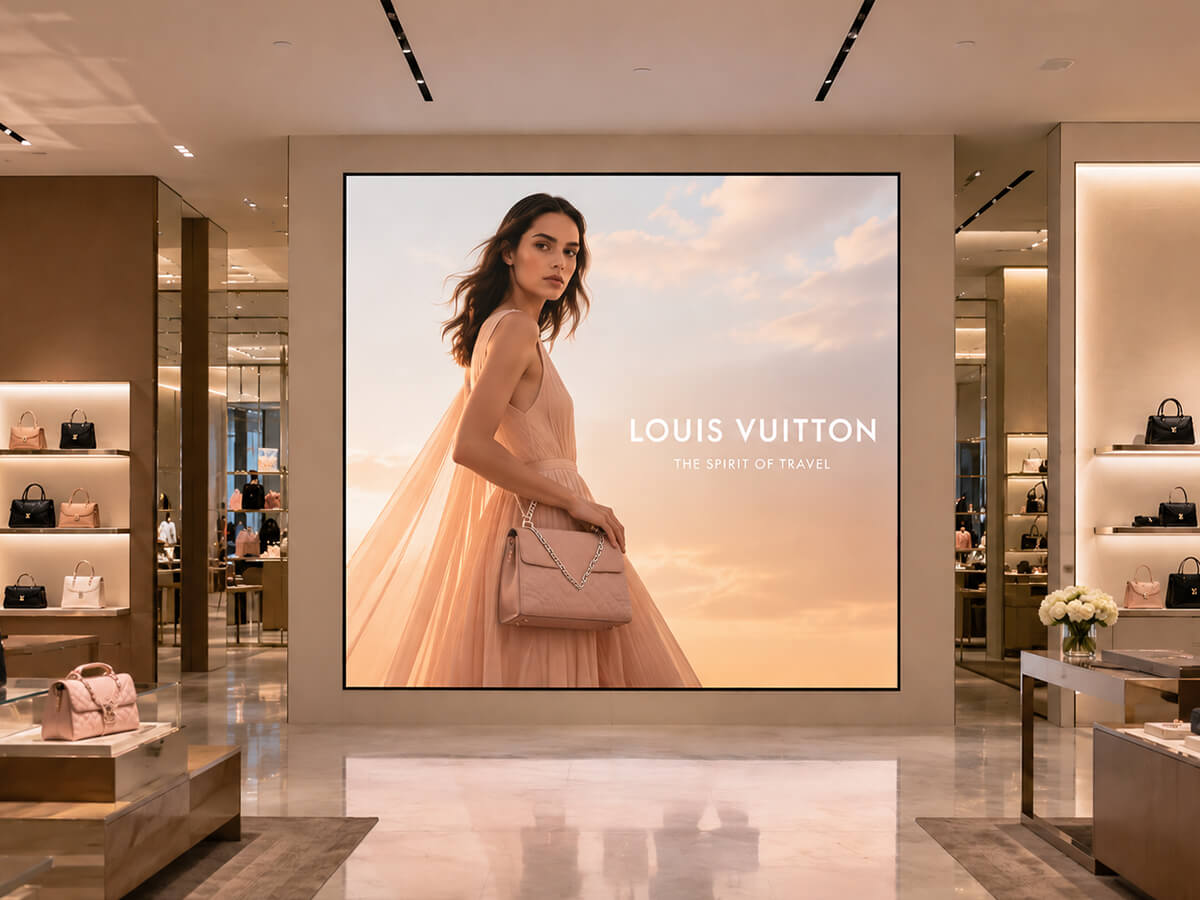

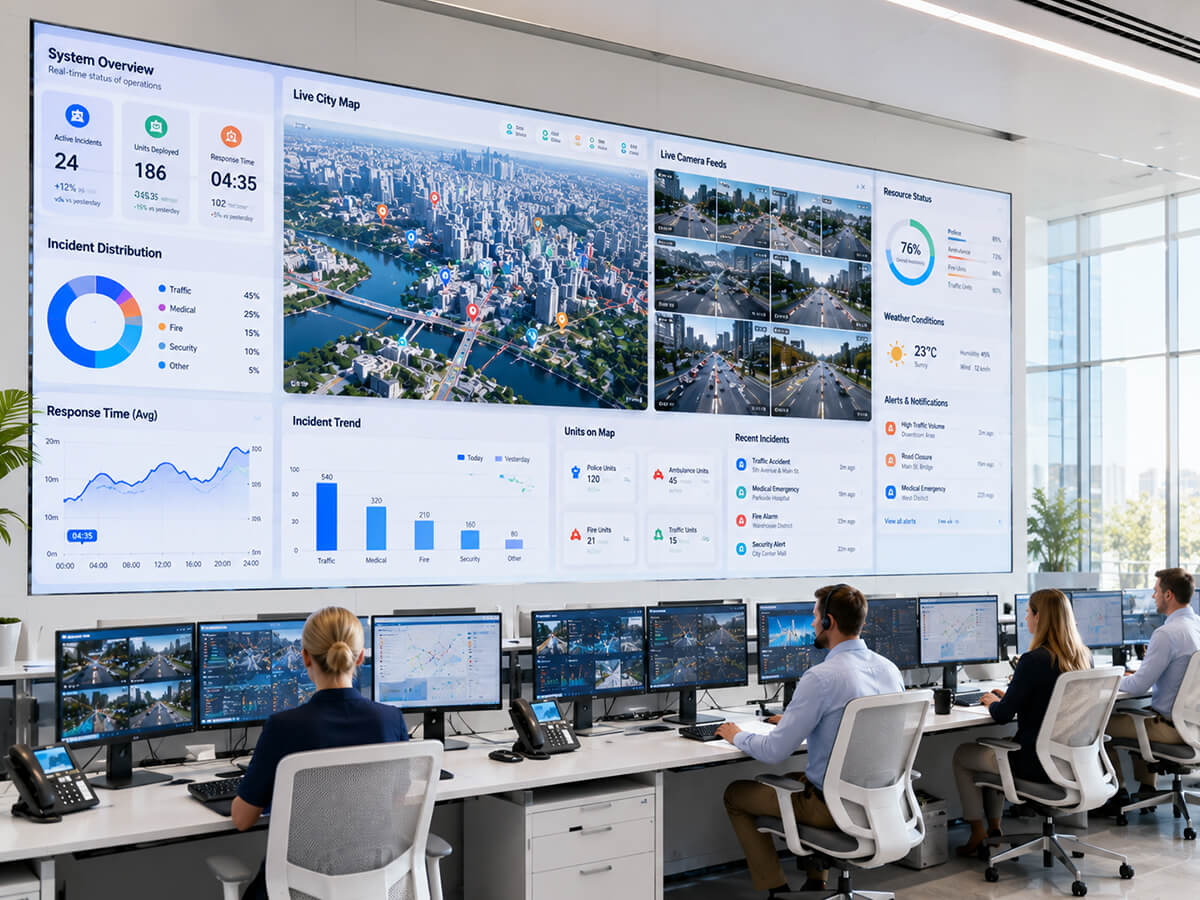

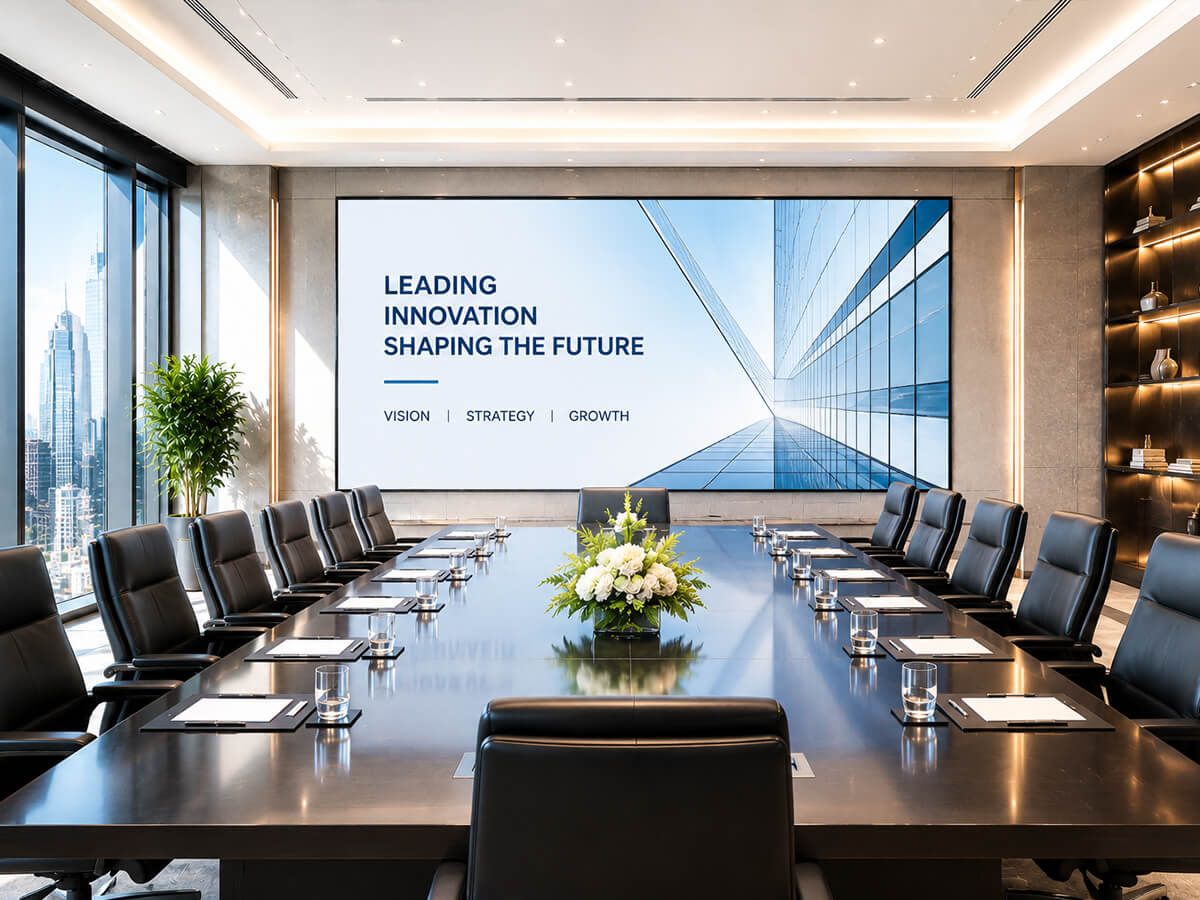

With dual signal and power backup, per-pixel brightness calibration and 14-bit grayscale, the IA Series is engineered for mission-critical environments — control rooms, broadcast studios, premium boardrooms and luxury commercial spaces.
Four Ultra Fine Pitches
| Specification | IA0.93 | IA1.25 | IA1.56 | IA1.875 |
|---|---|---|---|---|
| Pixel Pitch | 0.93mm | 1.25mm | 1.56mm | 1.875mm |
| Resolution | 640×360 | 480×270 | 384×216 | 320×180 |
| Drive Mode | 1/60 | 1/60 | 1/54 | 1/45 |
| Peak Power | ≤100W | ≤100W | ≤90W | ≤80W |
| Avg. Power | 30–45W | 30–45W | 30–40W | 30–40W |
| Recommended Viewing Distance | ≥1.5m | ≥2m | ≥2.5m | ≥3m |
Engineered for Mission-Critical Display

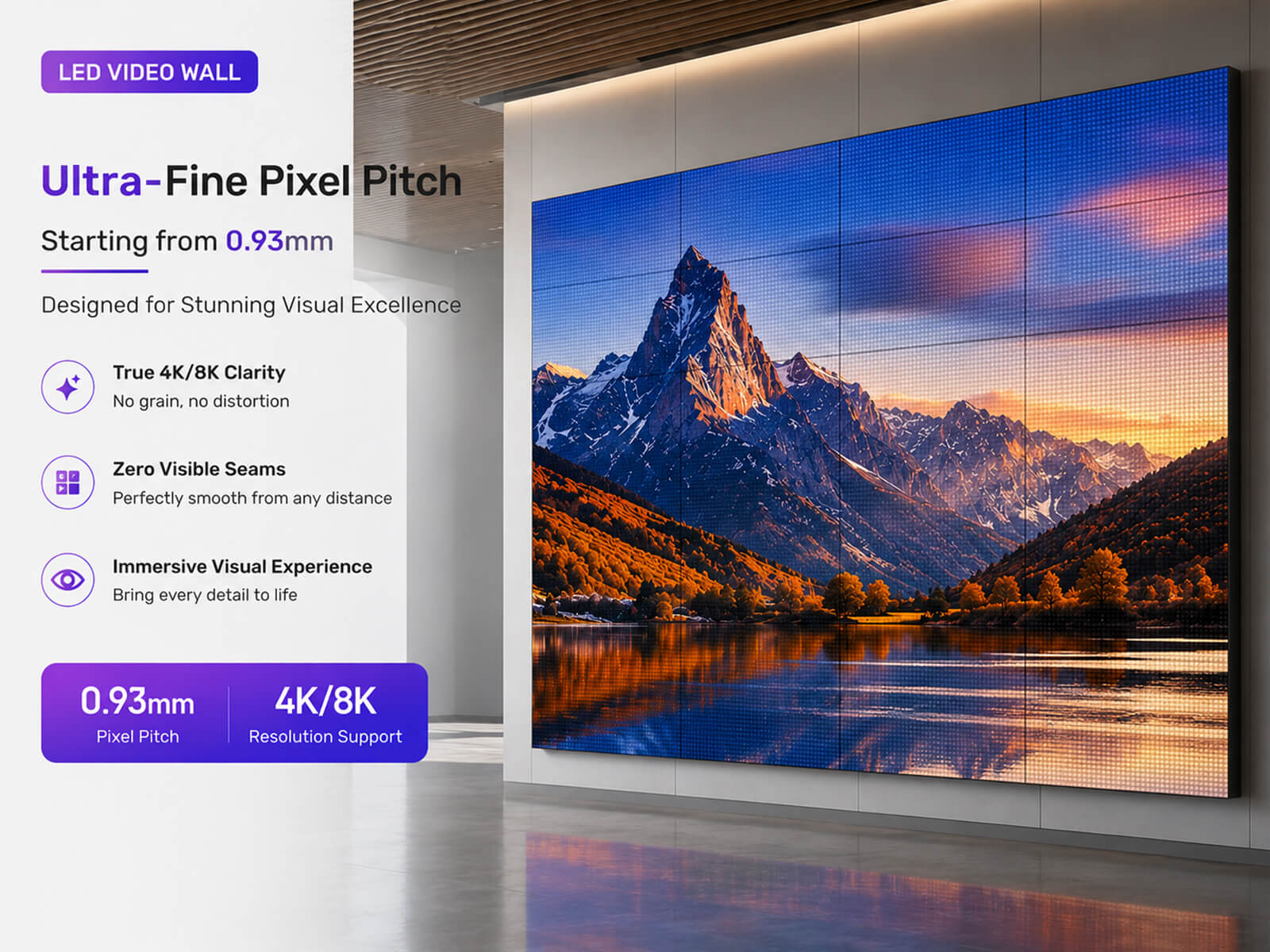

Ultra Fine 0.93mm Pitch
Starting from 0.93mm pixel pitch, the IA Series delivers seamless 4K/8K imagery with no visible pixelation — even at close-range viewing.

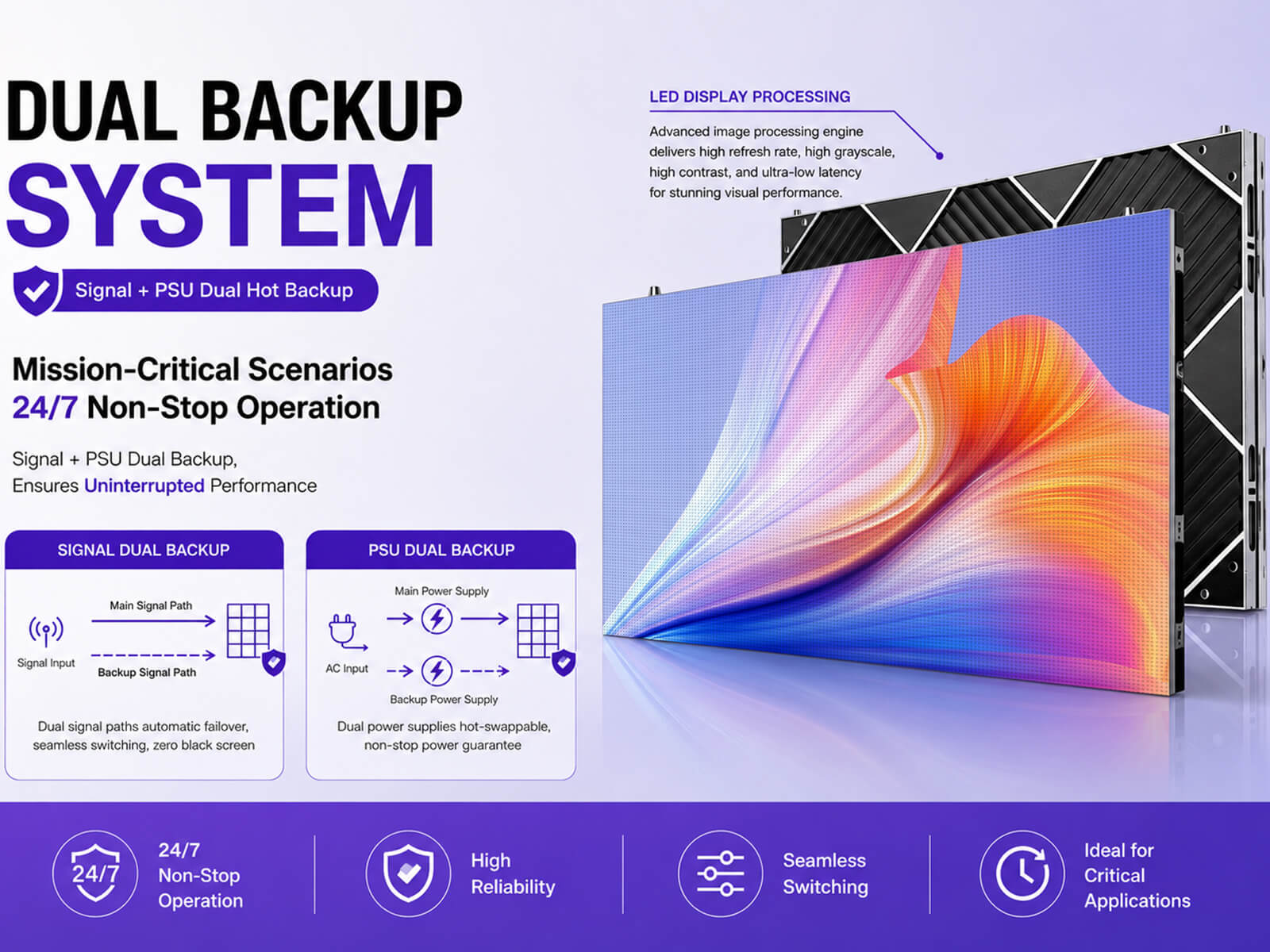

Dual Redundancy Backup
Signal backup + switching power supply backup ensure 24/7 uptime. The IA Series keeps displaying even when a primary signal or PSU fails.
Per-Pixel Calibration
Each pixel individually brightness-calibrated at the factory. Calibration data is stored on the module for consistent color uniformity over time.

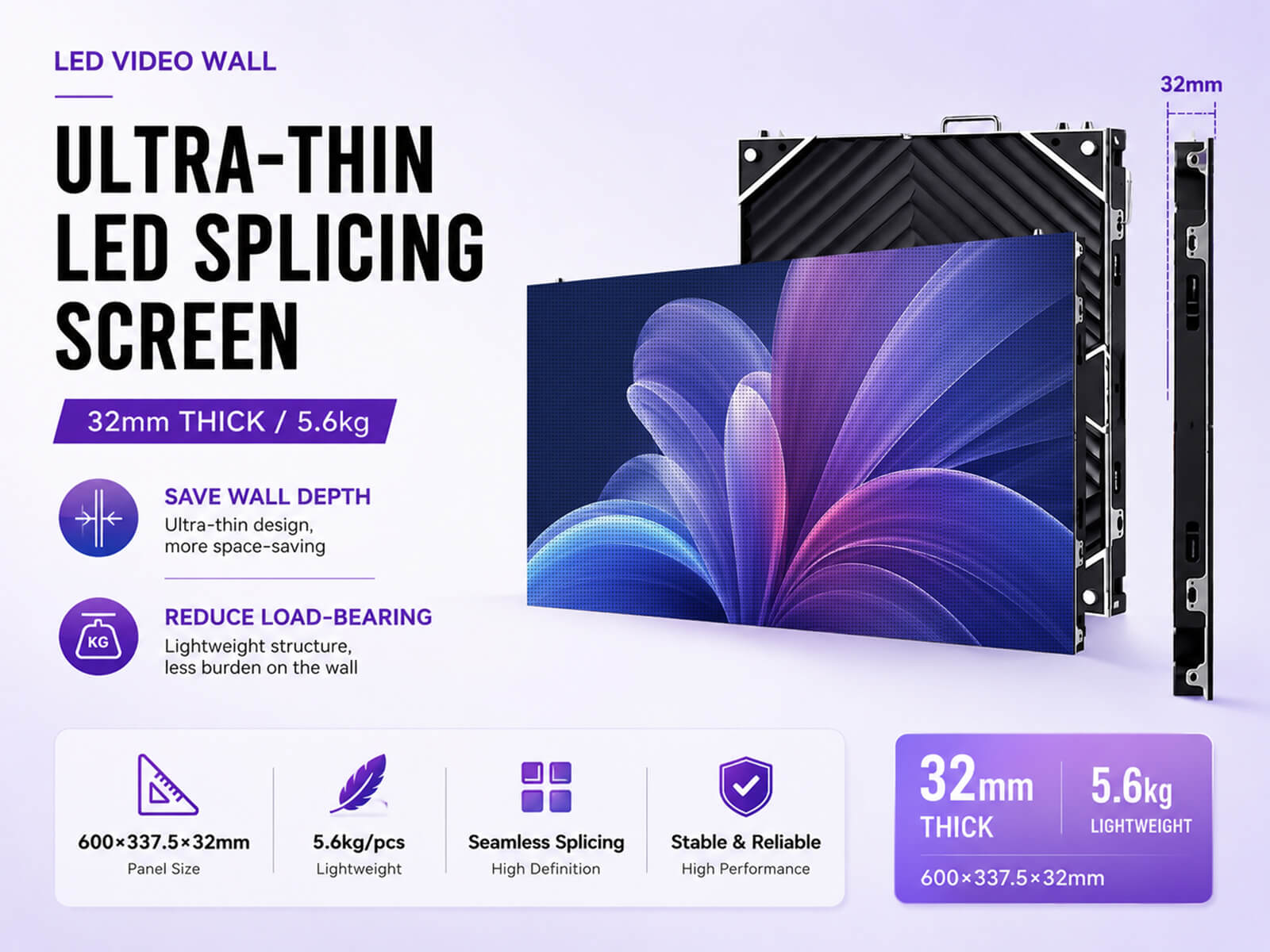

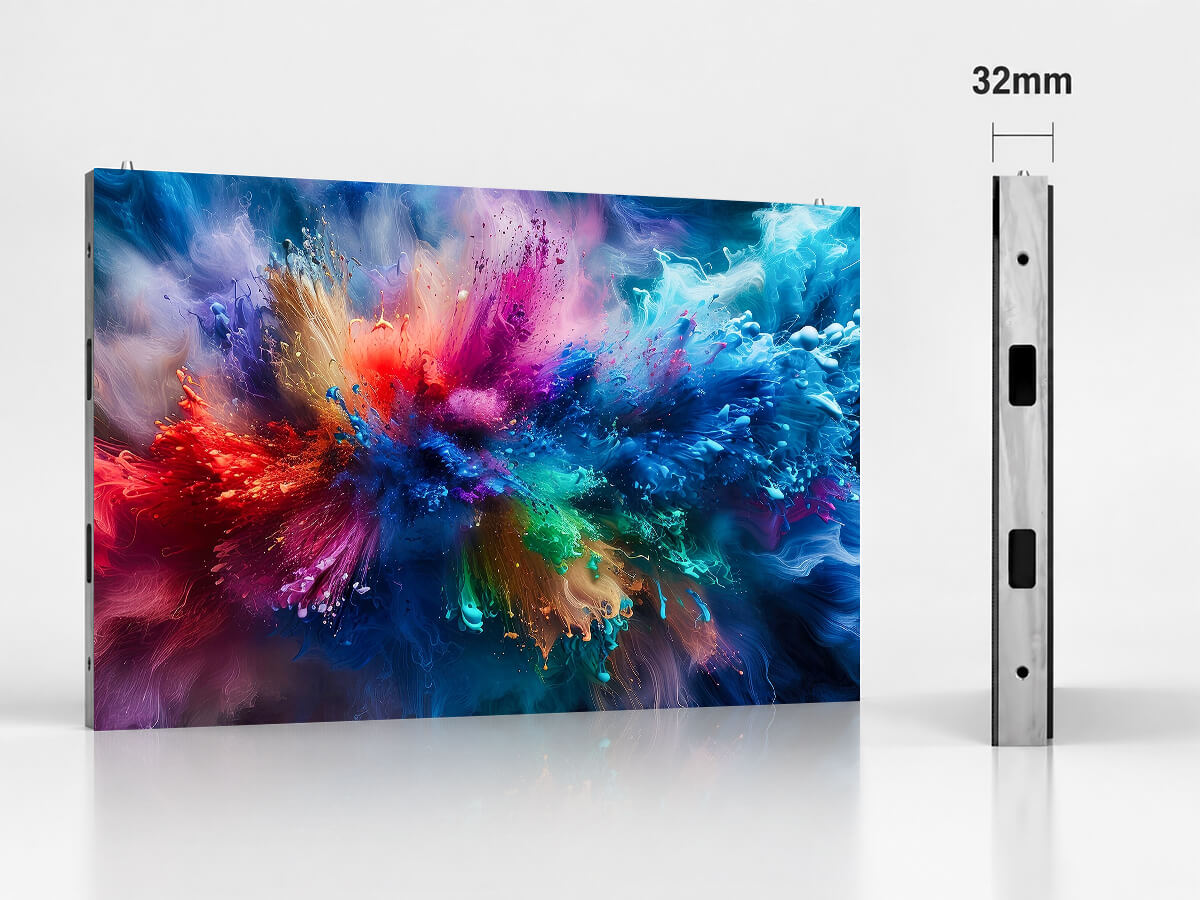

Slim 32mm Cabinet
600×337.5×32mm compact cabinet, just 5.6kg per panel. Saves wall depth and structural load — ideal for premium boardrooms and lobbies.

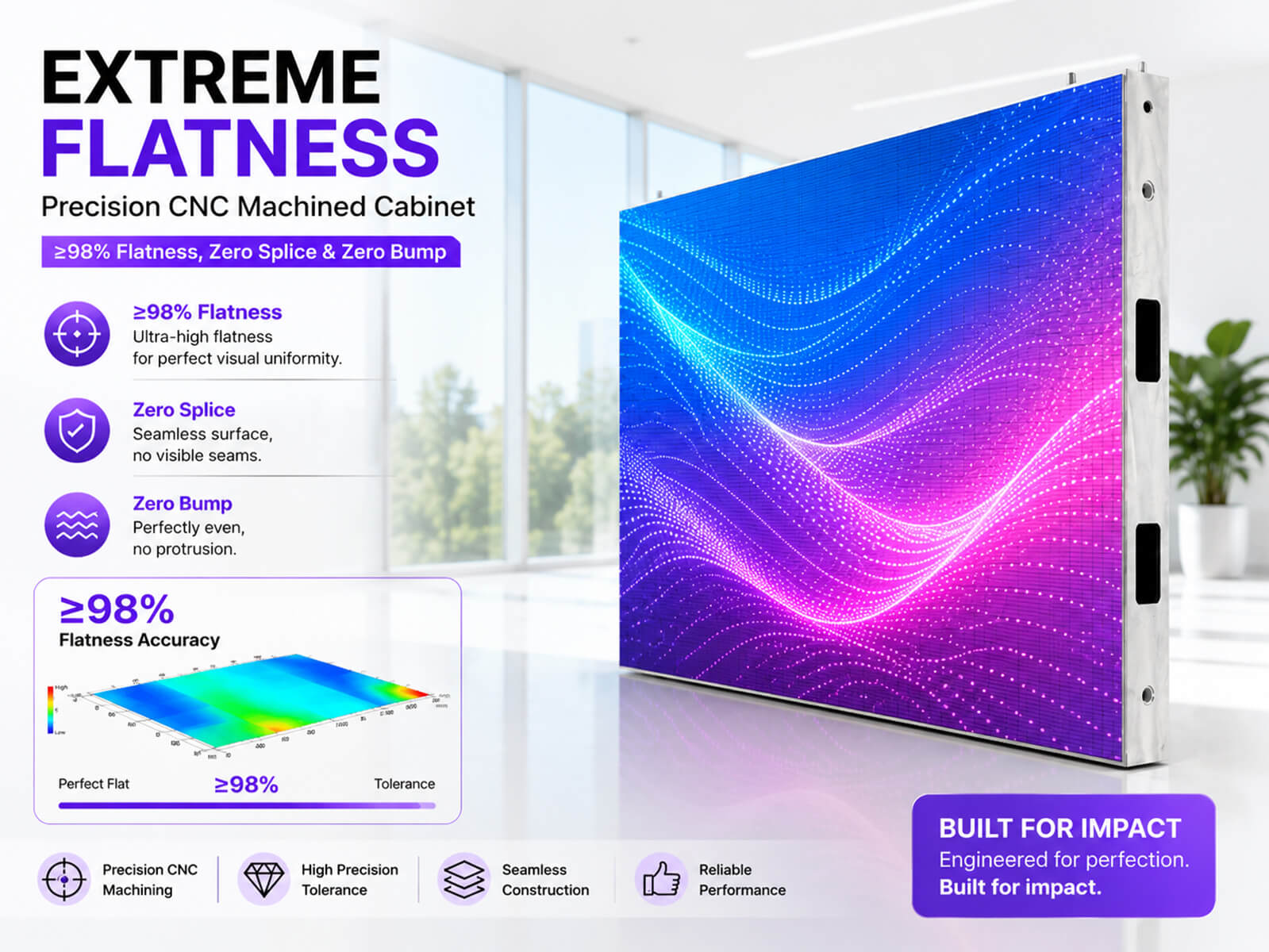

Seamless ≥98% Flatness
≥98% surface flatness with precision-machined cabinets. Zero gaps, zero ridges — a truly seamless display surface from edge to edge.

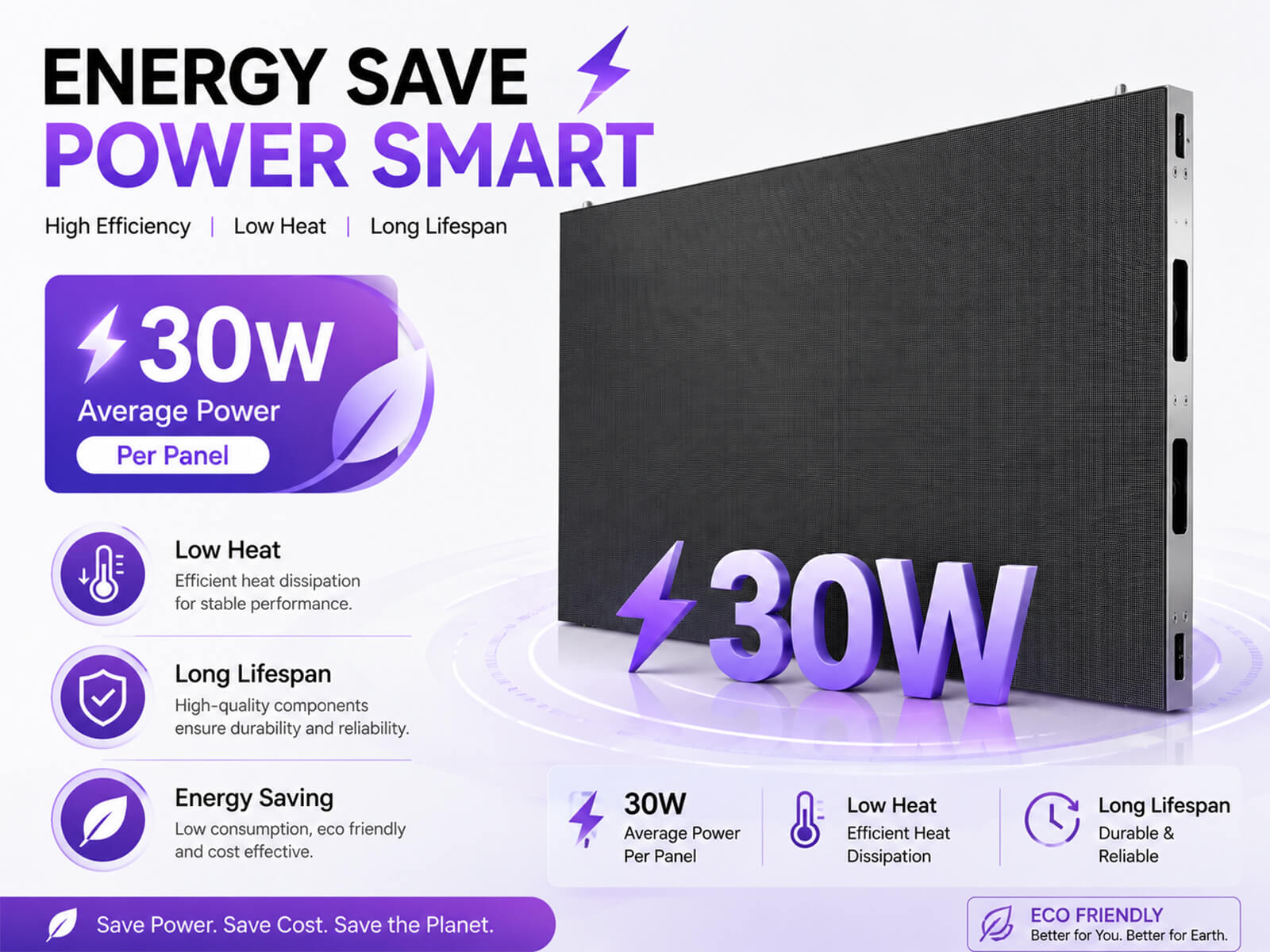

Energy Efficient
Average power as low as 30W per panel. Lower heat output, lower electricity cost, and ≤5° surface temperature rise for 24/7 operation.
Full Specifications
Where IA Series Performs
Request an IA Series Quote
Tell us your screen dimensions, viewing distance and pixel pitch target. We respond within 24 hours with the right model recommendation and pricing.
